Products: Tera & Giga Systems
Additive Manufacturing Micron by Micron
Achieve astonishingly small details with the Fabrica micro 3d printers
Complexity at No Extra Cost

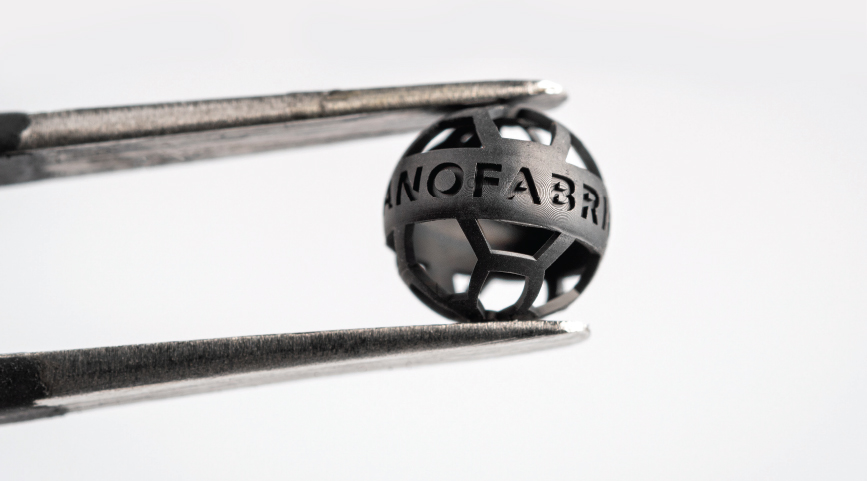

Precision micro 3d printed parts with all the advantages of additive manufacturing.
“The second advantage was the fact Fabrica’s technology could 3D print such a small part for just a few tens of dollars, in a functional material, with the required details, accuracy, and geometry, and in a very short time frame.” MultiVu
Automated Precision
The Digital Light Processor (DLP) engine captures every detail in your designs.
1-Micron Resolution
Fabrica systems deliver 1-5 micron additive layers for the highest precision 3D parts.
Select the best Materials
In addition to our Fabrica product line’s systems of precision materials, Fabrica systems allow for the printing of a wide range of external resins
Best in Class
Best in class materials to allow for incredibly high resolution and repeatable micro-level accuracy and precision
Launch your Research
The Fabrica micro manufacturing hub is designed to free innovation from the constraints of traditional manufacturing
Why Wait to Iterate?
Generate functional, micro 3d printed parts in hours – then repeat.
“The delivery time for five 3D printed parts was one day. Using CNC, five parts would have taken between 3-4 days.” AntiShock
Breakthrough Speeds
With 5 to 100 times faster printing rates, Fabrica systems surpass other micro manufacturing processes.
Bypass Tooling
Produce high-mix, low-volume batches of parts at a time with no need for lengthy tooling setup.
Production-Grade Output
Material excellence from the leader in precision Micro AM technology
Diverse Applications
Plastic parts for use in aerospace, electronics, automotive, medical, optics, and R&D. Read more.
Growing Opportunity
Increase your client base with cutting-edge micro-component capabilities.
Unparalleled precision from Nano Dimension’s Fabrica Systems
Miniature Connectors
Fabrica precision Micro-AM delivers precision connectors to be used in prototyping new devices
Optical Housing
As electronic consumer products become more compact, the ability to create and prototype miniature parts becomes more critical
Filter with Micro Channels
Miniaturized parts such as this microfilter enable manufacturers to test and innovate with new functionality at micro-sizes
Fabrica Printer Specifications
| Specification | Tera 250vx | Tera 25vx |
|---|---|---|
| Build Volume | 50 mm x 50 mm x 100 mm | |
| XY Resolution | 3.8 μm | 7.6 μm |
| Tolerance Accuracy* | +/- 2 μm | +/- 5 μm |
| Layer Thickness | Down to 1 μm | Down to 5 μm |
| Surface Roughness (Ra) | 0.4 μm | 0.9 μm |
| Weight (Net) | 450 kg | |
| Dimensions (W x D x H) | 134 cm x 81 cm x 170 cm | |
| Operating Temperature/ Humidity | 18 – 25°C / 30% | |
| Power | 100 – 240V 3KW | |
| Wavelength | 385 nm | |
| Materials | Wide selection of Fabrica materials and external resins (refer to safety and technical data sheets) | |
| Regulatory Compliance | CE | |
| Specification | Giga 250vx | Giga 25vx |
|---|---|---|
| Build Volume | 6 mm x 9 mm x 45 mm | 12 mm x 18 mm x 45 mm |
| XY Resolution | 3.8 μm | 7.6 μm |
| Tolerance Accuracy* | +/- 2 μm | +/- 5 μm |
| Layer Thickness | Down to 1 μm | |
| Surface Roughness (Ra) | 0.4 μm | 0.9 μm |
| Weight (Net) | 165 kg | |
| Dimensions (W x D x H) | 60 cm x 52 cm x 160 cm | |
| Operating Temperature/ Humidity | 18 – 25°C / 30% | |
| Power | 100 – 240V 500W | |
| Wavelength | 385 nm | |
| Materials | Wide selection of Fabrica materials and external resins (refer to safety and technical data sheets) | |
| Regulatory Compliance | CE | |
This data represents typical tested values at a controlled environment. Material properties can vary with part geometry, print orientation, print settings, environmental conditions and additional variables. To learn more about specific testing conditions, please contact a Nano Dimension representative. Specific performance of customer parts should be tested in accordance with customer’s specifications.
The above detailed data was tested, measured, or calculated using standard methods based on, inter alia, ASTM and IPC standards and are subject to change without notice. To the fullest extent permissible pursuant to applicable law, Nano Dimension (including any affiliate thereof) disclaims all warranties of any kind, express or implied. The above detailed data should not be used to establish design, quality control, or specification limits, and is not intended to substitute customer’s own testing to determine suitability for a particular application.
